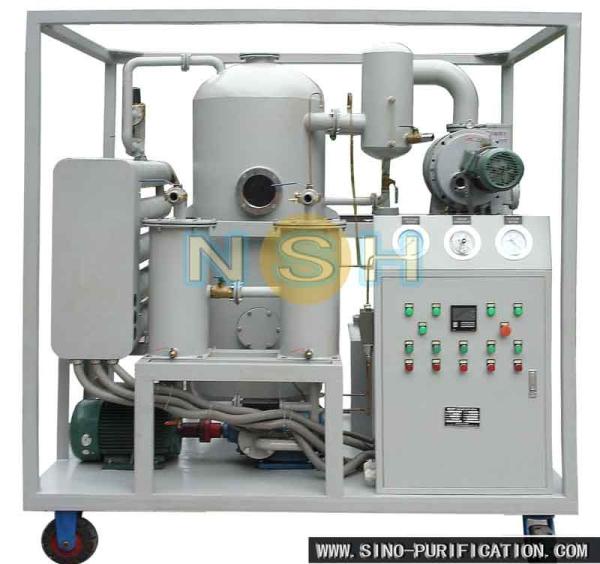

Custom Degassification 170kW Insulation Oil Vacuum Oil Purification Equipment
Insulation Oil Vacuum Oil Purification Equipment Function:
The function of vacuum oil filter is to eliminate the particles, water, gas and other pollutants in the oil, and reduce the acid value. Make the oil dielectric strength, water content, gas content, acid value, dielectric loss and other key indicators to meet the requirements of qualified specifications, as far as possible to ensure the safe operation of users' electrical equipment.
What is Oil Purifier?
Oil filter is a filter device which uses gravity centrifugal pressure vacuum distillation mass transfer and other technical methods to remove the oxidation by-products and moisture of mechanical impurities in impure oil. Oil filter is mainly used to improve the cleanliness of mechanical and electrical oil, so that it can play the best performance and extend the service life of equipment.
Optional :
1. Single axle trailer,double axle trailer,trailer with enclosure doors
Rode-worthy, 2 pneumatic tyres or 4 pneumatic tyres, pre-leg, two-eye, brake, rear lights,etc.
2. Separated operation room
With inspection window, air conditioning, operation desktop, storage sapce, etc, any custom option.
3. Explosion-proof
Tailored according to usage, i.e: Exd II BT4 or Exd II CT4.
4. Full automatic
PLC, touch screen/text screen/mimic diagram, data monitoring.
5. Steel enclosure shield
Weather-proof, steel cover, horizontal/vertical doors, hydraulic supports.
6. Aluminum enclosure shield
Weather-proof, aluminum cover, horizontal/vertical doors, hydraulic supports.
7. Station with forklifts hole type
Thicken chassis, forklifts hole, hoisting eyes on top, etc.
8. Tailored
Available in kinds requirements.
Order Tips:
If you are not sure about the filter needed exactly,please advise what types of the oil adn give the oil specification.We help you choose certain suitable oil purifier.
Double-Stage Vacuum Insulation Oil Purifier Technical Parameters:
| Parameters | Value |
| VFD-30 | VFD-50 | VFD-75 | VFD-100 | VFD-150 | VFD-200 | VFD-300 |
| Processed Oil Spec | Water Content, ppm | ≤5 |
Dielectric Strength,
Kv | ≥75 |
Filtration Fineness,
um | ≤5( or 1-5 as needed ) |
Gas Content,
% | ≤0.1 |
Corollary Equipment-VR Vacuum Pump Set
SINO-NSH-VR is units create vacuum in transformer and other equipment with double-stage vacuum system.
| Parameter | Value |
| VR-30 | VR-70 | VR-150 | VR-300 | VR-600 | VR-900 |
| Capacity, liters/hour | 100 | 250 | 500 | 1000 | 2000 | 3000 |
| Total Power, kW | 3 | 3 | 5 | 7 | 8 | 13 |
| Power supply | Fully Customizable |
| Maximum Vacuum Range,Pa | 0.06 |
| Outlet Diameter, mm | 32 | 32 | 40 | 40 | 50 | 65 |
| Dimensions | length, mm | 900 | 550 | 1000 | 1200 | 1500 | 1950 |
| width, mm | 800 | 900 | 800 | 800 | 1000 | 1800 |
| height, mm | 1200 | 800 | 1200 | 1200 | 1200 | 1300 |
| Weight(without trailer), kg | 450 | 550 | 600 | 900 | 950 | 1950 |
