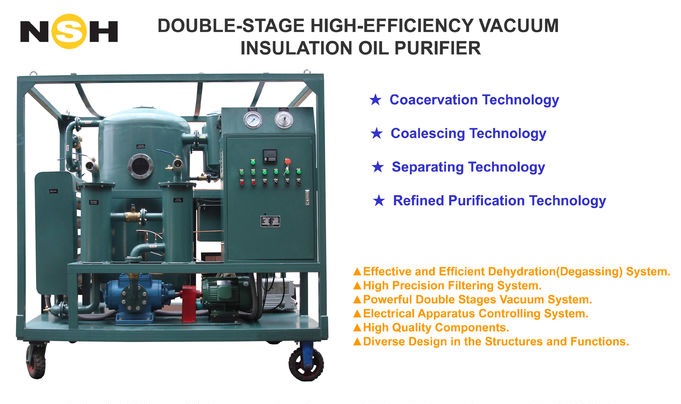

3000L/H High Capacity 36kW Double-Stage Vacuum Insulation Oil Purifier

Brand Name : SINO-NSH

Model Number : VFD-50

Certification : CE, ISO,SGS, SASO, SONCAP

Place of Origin : China

MOQ : 1 Set

Price : Negotiate

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50 sets per month

Delivery Time : 15 working days

Packaging Details : Wooden Case

Product Power : 36kW

Product Capacity : 3000L/h

Color : Custom

Power Supply : Fully Customizable

Material : Stainless Steel/Carbon Steel

Warranty : 1years

After Warranty Service : Video Technical Support, Online Support

Product Name : Double-Stage Vacuum Transformer Oil Purifier

Contact Now

3000L/H High Capacity 36kW Double-Stage Vacuum Insulation Oil Purifier


Corollary Equipment-VR Vacuum Pump Set:

Parameter Value
VR-30 VR-70 VR-150 VR-300 VR-600 VR-900
Capacity, liters/hour 100 250 500 1000 2000 3000
Total Power, kW 3 3 5 7 8 13
Power supply Fully Customizable
Maximum Vacuum Range,Pa 0.06
Outlet Diameter, mm 32 32 40 40 50 65
Dimensions length, mm 900 550 1000 1200 1500 1950
width, mm 800 900 800 800 1000 1800
height, mm 1200 800 1200 1200 1200 1300
Weight(without trailer), kg 450 550 600 900 950 1950



3000L/H High Capacity 36kW Insulation Oil Purifier Description:


Removes impurities and restores / improves the electrical, chemical and physical properties of transformer insulating oils. This oil is an integral part of most large power transformers. It serves two major roles, as a cooling agent and as an electrical insulator between internal components. Contamination of this oil compromises the insulating properties and leads to premature failure of the transformer. This contamination can be in the form of water, dissolved gases, or foreign particles. By processing this oil with a vacuum dehydration unit like the Vacudyne Transformer Oil Purifier, this contamination can be removed returning the insulating oil to it’s original specifications. The system incorporates high vacuum and mechanical filtration to dehydration, degasification and filter contaminated oil. Engineered with functionality and versatility to meet a wide range of applications.


36kW 3000L/H Insulation Oil Purifier Function:

The function of vacuum oil filter is to eliminate the particles, water, gas and other pollutants in the oil, and reduce the acid value. Make the oil dielectric strength, water content, gas content, acid value, dielectric loss and other key indicators to meet the requirements of qualified specifications, as far as possible to ensure the safe operation of users' electrical equipment.
3000L/H High Capacity 36kW Double-Stage Vacuum Insulation Oil Purifier


Double-Stage Vacuum Insulation Oil Purifier Technical Parameters:

Parameters Value
VFD-30 VFD-50 VFD-75 VFD-100 VFD-150 VFD-200 VFD-300
Processed Oil Spec Water Content, ppm ≤5
Dielectric Strength,
Kv		 ≥75
Filtration Fineness,
um		 ≤5( or 1-5 as needed )
Gas Content,
%		 ≤0.1



Other Optional for Transformer Oil/Insulation Oil:


VF series-- Single-Stage Vacuum Transformer oil Filtration machine.
VFD-R series-- Double-Stage Vacuum Black Insulation Oil Regeneration Machine

3000L/H High Capacity 36kW Double-Stage Vacuum Insulation Oil Purifier


Product Tags:

Decoloration Insulation Oil Purifier



Tailored Anti Explosion Insulation Oil Purifier



Deacidification Insulation Oil Purifier


3000L/H High Capacity 36kW Double-Stage Vacuum Insulation Oil Purifier Manufactures

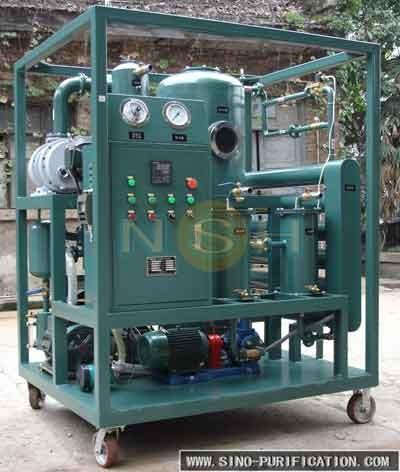

3000L/H High Capacity 36kW Double-Stage Vacuum Insulation Oil Purifier Images
