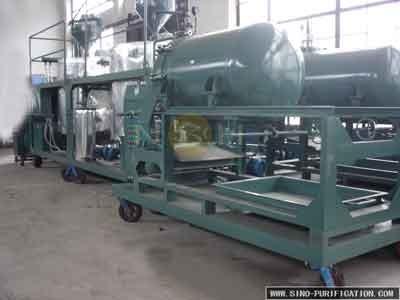

For Lube Oil Dehydration Degassing 106kw Vacuum Engine Oil Regeneration Purifier
Our Service:
1. 1 years warranty.
2. Provide customers with all technical drawings and materials of equipment purchased for free.
3. Strictly according to customer needs, provide customers with the best oil treatment solutions, provide good performance products.
4. Long-term preferential supply of spare parts
5. Ensure that the equipment provided with perfect processing technology, perfect testing means, equipment performance is good
6. Long-term free technical consultation, if there is technical innovation, the supplier for users to buy free product system upgrade
Features:
1. Liquid level auto-controlling system
2. Auto pressure protection system
3. Steay temperature auto-controlling system.
4. Eletrical auto-protection system to control electric phase, voltage, and overload of pump.
Filter maintenance:
1. Check the blocking of the filter element
2. In the case of no blocking 1 to 3 months to replace or clean the filter element, at the same time empty the shell visceral oil, clean the interior
3. Regular replacement of the filter
4. Can not bring foreign bodies
106kw Vacuum Engine Oil Regeneration Purifier Technical Parameters:
| Parameter | Value |
| GER-1 | GER-2 | GER-3 | GER-4 | GER-5 |
| Capacity, liters/hour | 2000 | 1200 | 1800 | 3000 | 6000 |
| Heating Power, kW | 72 | 18 | 30 | 45 | 90 |
| Total Power, kW | 81 | 21 | 35 | 50 | 96 |
| Power supply | Fully Customizable |
| Outlet Diameter/Inlet Diameter, mm | 40 | 40 | 40 | 40 | 40 |
| Recovery Rate, % | 70~90 |
| Dimensions | Reaction Sytem, mm | 3500x1900x2100~5600x2100x2300 |
| Filtration Sytem, mm | 2*2800x1400x2000~2*3200x1600x2100 |
| Exhaust Gas Processing, mm | 950x2000x3300 |
| Weight(without trailer), kg | 2500 | 3500 | 4500 | 5500 | 6000 |
Corollary Equipment-VR Vacuum Pump Set:
SINO-NSH-VR is units create vacuum in transformer and other equipment with double-stage vacuum system.
| Parameter | Value |
| VR-30 | VR-70 | VR-150 | VR-300 | VR-600 | VR-900 |
| Capacity, liters/hour | 100 | 250 | 500 | 1000 | 2000 | 3000 |
| Total Power, kW | 3 | 3 | 5 | 7 | 8 | 13 |
| Power supply | Fully Customizable | |
| Maximum Vacuum Range,Pa | 0.06 |
| Outlet Diameter, mm | 32 | 32 | 40 | 40 | 50 | 65 |
| Dimensions | length, mm | 900 | 550 | 1000 | 1200 | 1500 | 1950 |
| width, mm | 800 | 900 | 800 | 800 | 1000 | 1800 |
| height, mm | 1200 | 800 | 1200 | 1200 | 1200 | 1300 |
| Weight(without trailer), kg | 450 | 550 | 600 | 900 | 950 | 1950 |
Other Optional for Transformer Oil/Insulation Oil:
VFD series-- Double-Stage Vacuum Transformer Oil Purifier Machine
VF series-- Single-Stage Vacuum Transformer oil Filtration machine
VFD-R series-- Double-Stage Vacuum Black Insulation Oil Regeneration Machine
TF Series Turbine Oil Purifier:
| NSH-TF-E Explosion-proof Turbine Oil Purifier |
Sino-NSH-TF-E is explosion-proof type designed for flammable and combustible working conditions in power plant, petroleum, petrochemical, chemistry, metallurgy and other industries.
NSH-TF-E adds an explosion-proof system compare to NSH-TF, using comprehensive explosion-proof technology. The components such as heating system, electric control system, motor and solenoid valves etc are well-selected explosion-proof type adapt to different danger level. |
| NSH-TF-A Automatic Control Vacuum Turbine Oil Purifier |
Sino-NSH-TF-A isfully automatic unit developed based on NSH-TF, realize the intelligence of the machine and simplify the operation.
Sino-NSH-TF-A utilizes the brand Programmable Logic Controller(P.L.C) and a series of instrumentations, alarms and interlocks to provide a fully automatic operation. Manual control of various functions is provided as required. Several Pilots Lights are provided to indicate operational atatus of key components and alarm conditions.
With full scale of on-line testers and detectors as option, Sino-NSH-TF-A could implements accessible and reliable solutions for unique request and pratical usage. |
PS: we accept customization, welcome to inquiry!!!
