Large Capacity Vacuum Transformer Oil Purifier 12000 L/H
What Is Insulating Oil Purifier?
Insulating oil purifier, also called transformer oil purifier, is a kind of mechanical equipment that filters solid impurities and moisture in insulating oil and improves the performance and the insulation strength of insulating oil.
NSH-VFD-50 Application
The transformer oil filtration machine is used for oil-immersed electricity equipment in power plants, power stations, power companies, metallurgy, petrochemical, railways, and other industrial and mining enterprises, for purification and treatment of unqualified insulating oil.
NSH-VFD-50 Main Usage
NSH-VFD-50 double-stage vacuum insulating oil purification system is mainly used to extend the lifetime of oils used in transformers, circuit breakers, mutual inductors, voltage regulators, and switch gear, or to inject the insulating oil into the transformers.
Optimized Structures
-
Dehydration (Degassing) System
-
Filtering System
-
Oil Heating System
-
Control panel
-
Vacuum pump & Roots pump, screw pump
-
Cooling System and Condensing System Auto-Control And Protection System
The Advantages of NSH-VFD-50
To remove free, soluble water, carbon, free and dissolved gases, and particulate matter from the insulating oil
effectively and rapidly.
Easy handling and maintenance.
Online work and low noise.
Various sizes and configurations (alloy shields) are available.
Corollary Equipment-VR Vacuum Pump Set:
SINO-NSH-VR is a unit that creates a vacuum in transformers and other equipment with a double-stage vacuum system.
| Parameter | Value |
| VR-30 | VR-70 | VR-150 | VR-300 | VR-600 | VR-900 |
| Capacity, liters/hour | 100 | 250 | 500 | 1000 | 2000 | 3000 |
| Total Power, kW | 3 | 3 | 5 | 7 | 8 | 13 |
| Power supply | Fully Customizable |
| Maximum Vacuum Range, Pa | 0.06 |
| Outlet Diameter, mm | 32 | 32 | 40 | 40 | 50 | 65 |
| Dimensions | length, mm | 900 | 550 | 1000 | 1200 | 1500 | 1950 |
| width, mm | 800 | 900 | 800 | 800 | 1000 | 1800 |
| height, mm | 1200 | 800 | 1200 | 1200 | 1200 | 1300 |
| Weight(without trailer), kg | 450 | 550 | 600 | 900 | 950 | 1950
|
70W 18000L/H Vacuum Insulation Oil Purifier Description
Vacuum Lubricating Oil Purifier Technical Parameters:
| Parameter | Value |
| LV-10 | LV-20 | LV-30 | LV-50 | LV-100 | LV-150 | LV-200 |
| Capacity, liters/hour | 600 | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 |
| Heating Power, kW | 15 | 18 | 30 | 45 | 90 | 120 | 180 |
| Total Power, kW | 17 | 21 | 35 | 50 | 96 | 126 | 186 |
| Power supply | Fully Customizable |
| Inlet Diameter, mm | 20 | 20 | 20 | 25 | 40 | 50 | 65 |
| Outlet Diameter, mm | 20 | 20 | 20 | 25 | 40 | 50 | 65 |
Dimensions
(without trailer) | length, mm | 1350 | 1500 | 1550 | 1900 | 2200 | 2400 | 2900 |
| width, mm | 1100 | 1200 | 1250 | 1400 | 1500 | 1600 | 1800 |
| height, mm | 1700 | 1750 | 1800 | 1800 | 1850 | 1900 | 2000 |
| Weight(without trailer), kg | 600 | 800 | 900 | 1150 | 1500 | 1700 | 2400 |
| Processed Oil Spec | Water Content, ppm | ≤100 |
| Dielectric Strength, Kv | ≤6 |
| Filtration Fineness, um | ≤5( or 1-5 as needed ) |
Other Models Oil Purifier:
| TF Series: |
| TF series oil filter is a filtration and dehydration unit with thermal and vacuum processing, it's ideal for filtration and dehydration of turbine oil, this unit can extend turbine oil life by removing contaminates from oil, such as water, gas, and particulates, improve the oil properties. |
| FV Series: |
| LV series oil filter is a stainless steel machine with thermal and vacuum processing, it's mainly used to improve the properties of phosphate ester fire-resistant oil in generator sets. |
| GER Series: |
| Used oil regeneration system is suitable to regenerate used internal-combustion engine oil including diesel engine oil, gasoline engine oil, and used hydraulic oil, and other used lubrication oil for machinery. |
| GED series: |
| it is used to recycle all kinds of waste oil into base oil or diesel oil with high quality. |
Notice:
1. Switch on the power supply, the ground cable must be connected before operation.
2. Before the operation, pay attention to the direction of motor rotation, which should conform to the arrow direction.
3. When there is no oil circulation, do not open the heater, otherwise, it will burn out the heater, or it will explode.
PS: we accept customization, welcome to inquiry!!
Product Tags:
|
|

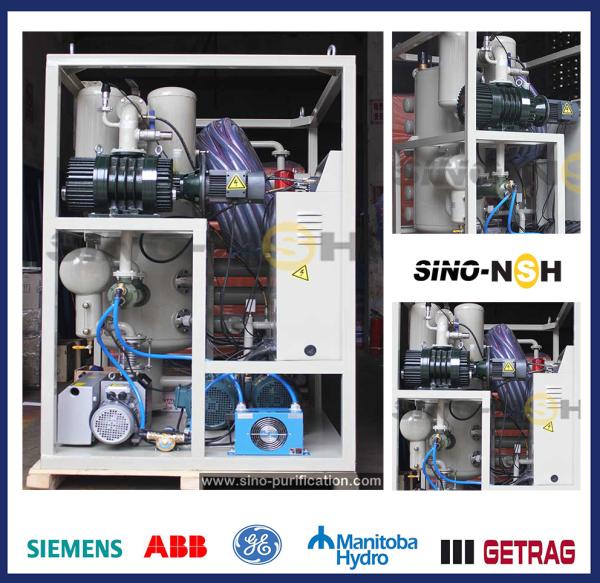

Small Size Vacuum Transformer Oil Purifier 3000L / H Portable Images
|
