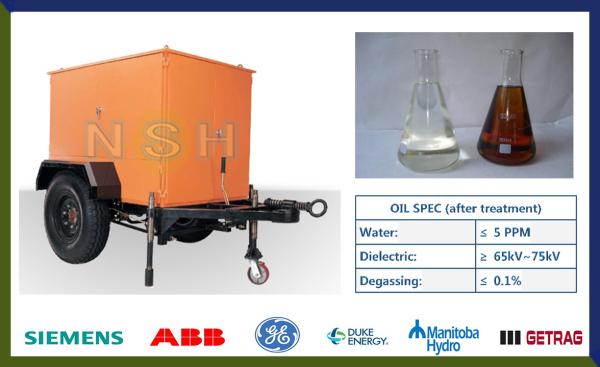

Portable Roadworthy Vacuum Transformer Oil Purifier 1800 Liters/Hour
The Technologies Utilized By NSH-VFD-50
SH-VFD-200 utilizes coacervation technology, coalescing technology, separating technology, and refined purification technology.
Advantages of the NSH-VFD-50
- Enhance the value of breakdown voltage greatly.
- Easy handling and maintenance.
- Online work
- Lower maintenance and replacement expenses
- High efficiency and effectiveness
- Small size, lightweight, low noise
Why Should The Insulating Oil Be Filtered?
The transformer oil is affected by external impurities, contact with the air, and the high operating temperature of the transformer itself, so the transformer oil gradually deteriorates. After the transformer oil is used for some time, many harmful impurities generated during the operation of the transformer will be incorporated, which will reduce the quality of the transformer.
Insulating Oil Filtration Serves Two Important Purposes
1. To filter out the impurities in the transformer oil, keep the transformer oil pure, facilitate the smooth flow of the transformer oil in the thermal cycle, and facilitate the heat dissipation of the transformer.
2. To filter out the moisture, prevent deterioration, and keep good insulation performance of the transformer oil. To avoid explosion caused by short circuit because of the discharge of live parts inside the transformer to the iron core and the box due to the deterioration of the transformer oil.
Corollary Equipment-VR Vacuum Pump Set:
SINO-NSH-VR is a unit that creates a vacuum in transformers and other equipment with a double-stage vacuum system.
| Parameter | Value |
| VR-30 | VR-70 | VR-150 | VR-300 | VR-600 | VR-900 |
| Capacity, liters/hour | 100 | 250 | 500 | 1000 | 2000 | 3000 |
| Total Power, kW | 3 | 3 | 5 | 7 | 8 | 13 |
| Power supply | Fully Customizable |
| Maximum Vacuum Range, Pa | 0.06 |
| Outlet Diameter, mm | 32 | 32 | 40 | 40 | 50 | 65 |
| Dimensions | length, mm | 900 | 550 | 1000 | 1200 | 1500 | 1950 |
| width, mm | 800 | 900 | 800 | 800 | 1000 | 1800 |
| height, mm | 1200 | 800 | 1200 | 1200 | 1200 | 1300 |
| Weight(without trailer), kg | 450 | 550 | 600 | 900 | 950 | 1950
|
70W 18000L/H Vacuum Insulation Oil Purifier Description
Vacuum Lubricating Oil Purifier Technical Parameters:
| Parameter | Value |
| LV-10 | LV-20 | LV-30 | LV-50 | LV-100 | LV-150 | LV-200 |
| Capacity, liters/hour | 600 | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 |
| Heating Power, kW | 15 | 18 | 30 | 45 | 90 | 120 | 180 |
| Total Power, kW | 17 | 21 | 35 | 50 | 96 | 126 | 186 |
| Power supply | Fully Customizable |
| Inlet Diameter, mm | 20 | 20 | 20 | 25 | 40 | 50 | 65 |
| Outlet Diameter, mm | 20 | 20 | 20 | 25 | 40 | 50 | 65 |
Dimensions
(without trailer) | length, mm | 1350 | 1500 | 1550 | 1900 | 2200 | 2400 | 2900 |
| width, mm | 1100 | 1200 | 1250 | 1400 | 1500 | 1600 | 1800 |
| height, mm | 1700 | 1750 | 1800 | 1800 | 1850 | 1900 | 2000 |
| Weight(without trailer), kg | 600 | 800 | 900 | 1150 | 1500 | 1700 | 2400 |
| Processed Oil Spec | Water Content, ppm | ≤100 |
| Dielectric Strength, Kv | ≤6 |
| Filtration Fineness, um | ≤5( or 1-5 as needed ) |
Other Models Oil Purifier:
| TF Series: |
| TF series oil filter is a filtration and dehydration unit with thermal and vacuum processing, it's ideal for filtration and dehydration of turbine oil, this unit can extend turbine oil life by removing contaminates from oil, such as water, gas, and particulates, improve the oil properties. |
| FV Series: |
| LV series oil filter is a stainless steel machine with thermal and vacuum processing, it's mainly used to improve the properties of phosphate ester fire-resistant oil in generator sets. |
| GER Series: |
| Used oil regeneration system is suitable to regenerate used internal-combustion engine oil including diesel engine oil, gasoline engine oil, and used hydraulic oil, and other used lubrication oil for machinery. |
| GED series: |
| it is used to recycle all kinds of waste oil into base oil or diesel oil with high quality. |
Notice:
1. Switch on the power supply, the ground cable must be connected before operation.
2. Before the operation, pay attention to the direction of motor rotation, which should conform to the arrow direction.
3. When there is no oil circulation, do not open the heater, otherwise, it will burn out the heater, or it will explode.
PS: we accept customization, welcome to inquiry!!
